List 3--Inner Stator

Product List

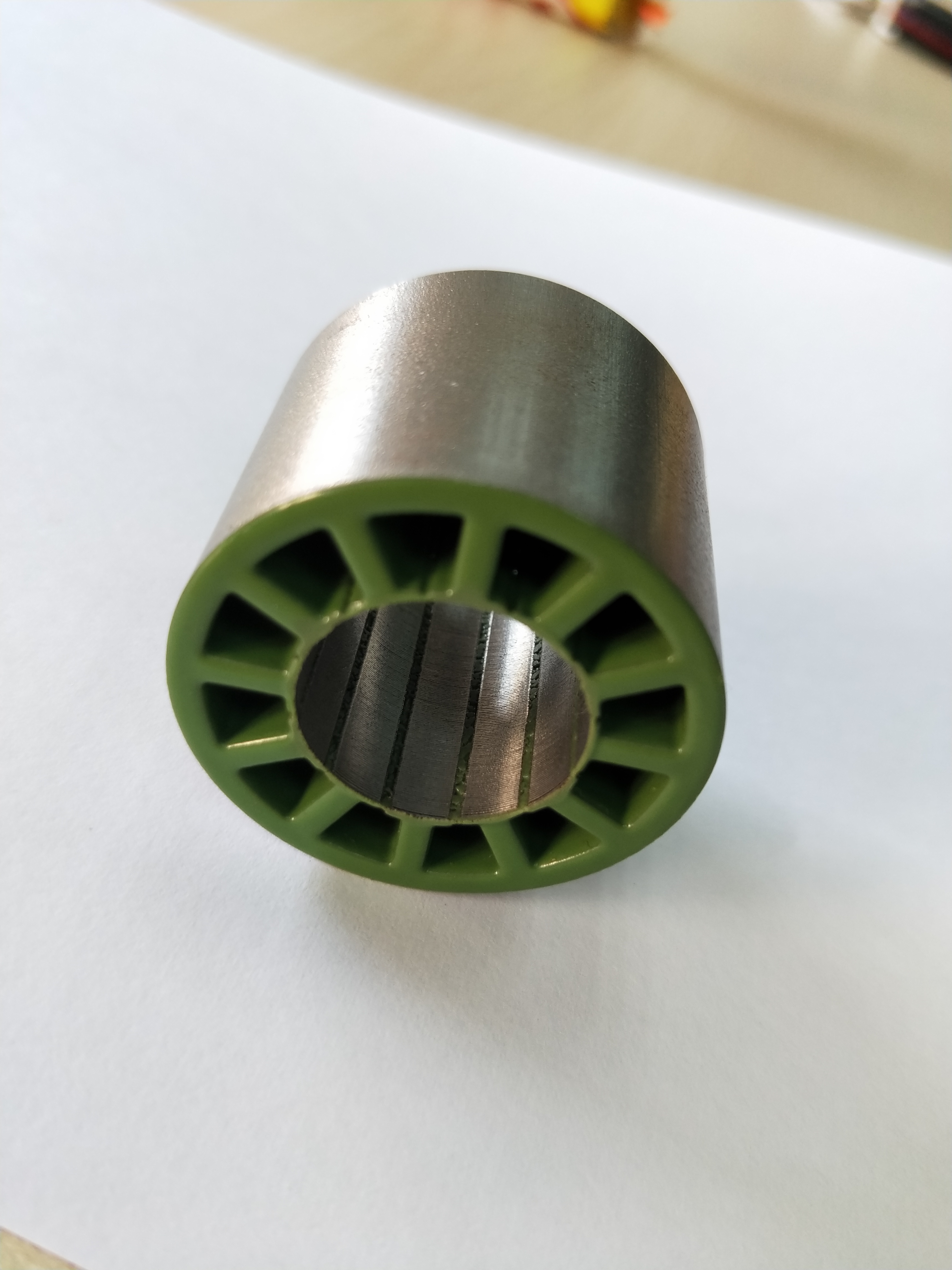

Standard Inner Stator With Ready-made Stamping mold

We have 106 set of Inner stators stamping mold available from 15mm OD to 110mmm OD;

We also have 10 set of Stator+rotor sets package available as following list shows, please contact us to get technical drawing;


ItemOD*ID*Slots No.Silicon Steel  ThicknessHeightRemarks
1￠15.00*￠7.00-03P0.35/0.2mmCustomized
2￠15.00*￠7.00-03P0.35/0.2mmCustomized
3￠18.80*￠10.00-06P0.35mmCustomized
4￠20.00*￠10.80-06P0.35mmCustomized
5￠22.50*￠13.00-12P0.35/0.2mmCustomized
6￠22.80*￠12.40-09P0.5mmCustomized
7￠23.00*￠12.40-04P0.5mmCustomized
8￠23.80*￠11.70-06P0.35/0.2mmCustomized
9￠24.25*￠13.12-09P0.35mmCustomized
10￠26.25*￠13.85-06P0.35/0.2mmCustomized
11￠26.25*￠15.00-06P0.35/0.2mmCustomized
12￠26.30*￠15.00-06P0.35/0.2mmCustomized
13￠26.50*￠17.00-06P0.35/0.2mmCustomized
14￠27.00*￠15.00-04P0.5mmCustomized
15￠28.00*￠13.00-12P0.5mmCustomized
16￠30.00*￠13.00-04P0.5mmCustomized
17￠30.00*￠16.00-06P0.35/0.2mmCustomized
18￠30.80*￠19.00-06P0.5mmCustomized
19￠31.50*￠16.60-06P0.5mmCustomized
20￠32.30*￠14.70-03P0.35/0.2mmCustomized
21￠33.00*￠14.60-08P0.5mmCustomized
22￠33.00*￠17.50-06P0.35mmCustomized
23￠33.10*￠19.60-06P0.35mmCustomized
24￠33.60*￠15.00-06P0.5mmCustomized
25￠33.60*￠19.60-06P0.35mmCustomized
26￠33.70*￠15.00-04P0.5mmCustomized
27￠33.75*￠18.00-06P0.35mmCustomized
28￠33.80*￠16.70-06P0.35/0.2mmCustomized
29￠33.80*￠16.80-06P0.35mmCustomized
30￠33.80*￠21.00-06P0.35/0.2mmCustomized
31￠33.90*￠18.00-06P0.5/0.35mmCustomized
32￠34.00*￠18.00-12P0.35/0.2mmCustomized
33￠34.00*￠19.50-12P0.35/0.2mmCustomized
34￠34.00*￠19.50-18P0.35/0.2mmCustomized
35￠34.30*￠13.00-03P0.35/0.2mmCustomized
36￠34.30*￠14.90-03P0.35/0.2mmCustomized
37￠34.30*￠19.00-12P0.35/0.2mmCustomized
38￠35.00*￠17.00-09P0.35mmCustomized
39￠35.00*￠18.80-12P0.35/0.2mmCustomized
40￠36.00*￠15.60-06P0.5mmCustomized
41￠36.00*￠15.65-04P0.5mmCustomized
42￠38.00*￠20.00-06P0.35/0.2mmCustomized
43￠38.10*￠20.00-12P0.35/0.2mmCustomized
44￠38.10*￠20.00-12P0.35/0.2mmCustomized
45￠38.40*￠20.40-12P0.35/0.2mmCustomized
46￠38.40*￠20.40-18P0.35/0.2mmCustomized
47￠39.70*￠17.15-06P0.5mmCustomized
48￠39.70*￠20.00-06P0.5/0.35mmCustomized
49￠39.70*￠21.30-06P0.5mmCustomized
50￠39.90*￠23.60-06P0.35/0.2mmCustomized
51￠40.00*￠20.60-12P0.35mmCustomized
52￠40.00*￠23.00-06P0.35/0.2mmCustomized
53￠40.00*￠23.20-12P0.35/0.2mmCustomized
54￠41.00*￠22.80-06P0.5/0.35mmCustomized
55￠41.00*￠23.00-04P0.5mmCustomized
56￠41.30*￠23.00-06P0.5/0.35mmCustomized
57￠42.00*￠16.50-06P0.35mmCustomized
58￠42.00*￠20.00-06P0.5/0.35mmCustomized
59￠44.20*￠23.70-04P0.5mmCustomized
60￠45.00*￠21.00-09P0.35mmCustomized
61￠45.00*￠23.90-06P0.5mmCustomized
62￠48.00*￠25.00-06P0.35/0.2mmCustomized
63￠48.00*￠27.00-06P0.35/0.2mmCustomized
64￠48.00*￠29.40-06P0.5mmCustomized
65￠50.00*￠27.00-06P0.35/0.2mmCustomized
66￠52.00*￠27.00-06P0.35/0.2mmCustomized
67￠52.00*￠30.00-06P0.5mmCustomized
68￠52.50*￠28.64-18P0.35/0.2mmCustomized
69￠52.50*￠28.80-12P0.5mmCustomized
70￠54.00*￠27.00-09P0.5mmCustomized
71￠54.00*￠29.60-12P0.5mmCustomized
72￠54.00*￠29.80-09P0.35mmCustomized
73￠54.00*￠30.00-06P0.5mmCustomized
74￠54.97*￠23.80-06P0.5mmCustomized
75￠57.00*￠31.20-06P0.35mmCustomized
76￠60.00*￠31.00-06P0.5mmCustomized
77￠60.00*￠33.00-06P0.35mmCustomized
78￠61.00*￠35.00-06P0.5mmCustomized
79￠65.00*￠30.00-06P0.5mmCustomized
80￠65.00*￠30.00-09P0.35mmCustomized
81￠66.00*￠44.00-12P0.35mmCustomized
82￠69.00*￠32.00-09P0.35mmCustomized
83￠71.00*￠37.40-08P0.5mmCustomized
84￠71.00*￠37.59-04P0.5mmCustomized
85￠72.00*￠49.40-02P0.5mmCustomized
86￠74.55*￠43.00-09P0.35mmCustomized
87￠75.00*￠32.00-09P0.35mmCustomized
88￠75.00*￠40.00-09P0.35mmCustomized
89￠75.00*￠46.00-12P0.5mmCustomized
90￠76.00*￠35.00-06P0.5mmCustomized
91￠76.00*￠36.00-06P0.35mmCustomized
92￠76.00*￠42.00-06P0.5mmCustomized
93￠77.00*￠38.00-12P0.5mmCustomized
94￠78.00*￠42.00-06P0.5mmCustomized
95￠80.00*￠40.00-06P0.5mmCustomized
96￠80.00*￠46.40-12P0.5mmCustomized
97￠85.00*￠46.00-12P0.5mmCustomized
98￠85.00*￠50.80-12P0.5mmCustomized
99￠85.00*￠51.00-09P0.35mmCustomized
100￠85.00*￠51.00-12P0.5mmCustomized
101￠85.00*￠51.00-12P0.5mmCustomized
102￠90.00*￠46.60-06P0.5mmCustomized
103￠90.00*￠52.00-12P0.35mmCustomized
104￠95.00*￠55.00-12P0.5mmCustomized
105￠100.00*￠60.00-24P0.5mmCustomized
106￠110.00*￠65.00-12P0.5/0.35mmCustomized



This is the package with Stator + Rotor Laminations:

Rotor（OD*ID*Slots）+  Rotor（OD*ID*Pole）Silicon Steel  ThicknessHeight
￠28*￠15.4-12P + ￠14.0*￠4-4P0.35/0.2mmCustomized
￠34*￠16.6-12P + ￠15.1*￠5-4P0.35/0.2mmCustomized
￠34*￠22.0-9P + ￠20.0*￠6-6P0.35/0.2mmCustomized
￠36*￠21.0-18P + ￠19.8*￠6-6P0.35/0.2mmCustomized
￠38*￠21.8-18P + ￠20.0*￠6-6P0.35/0.2mmCustomized
￠50*￠30.0 + ￠27.0*￠90.35/0.2mmCustomized
￠26.5*￠14.7-12P+￠11*￠4.50.35/0.2mmCustomized
￠100.0*￠60.0-12P+￠18.96*￠11-6P0.35/0.2mmCustomized
￠35*￠18.0-6P + ￠18*￠14.50.35/0.2mmCustomized
